TIMOTION • Code 059820 • CF TA16-4100-E25

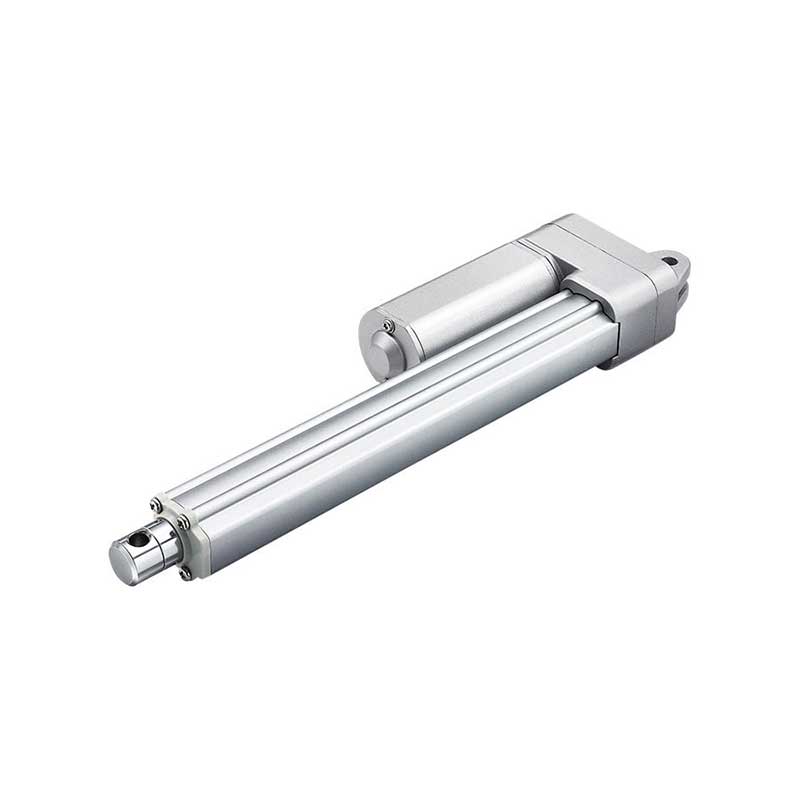

TiMOTION actuator TA16-2B-200330-36131-0023- 0T, Push/Pull 2000N, Stroke 200 mm, Speed 5 mm/s

Name: TiMOTION actuator TA16-2B-200330-36131-0023- 0T, Push/Pull 2000N, Stroke 200 mm, Speed 5 mm/s
Brand: TIMOTION
SKU: 059820
Price: 232.50 EUR
Availability: BackOrder

* Note: product photos are for illustration only and may not accurately depict the technical characteristics of the items

TIMOTION • Code 059820 • CF TA16-4100-E25

TiMOTION actuator TA16-2B-200330-36131-0023- 0T, Push/Pull 2000N, Stroke 200 mm, Speed 5 mm/s

The TiMOTION linear actuator TA16 is the evolution of the TA2 models and finds application in multiple fields. In fact, it can reach a load of 2500N and a speed of 19.2mm/s in linear speed. Another peculiar feature of the TA16 is its quiet operation ensured by a transmission using plastic gears. The construction shape with a parallel geared motor allows this actuator to be utilized in tight installation spaces without sacrificing load capacity. It is available with protection up to IP66 and Hall position sensors or potentiometers. Among the certifications of the TA16 Series are IEC60601-1, ES60601-1, IEC60601-1-2, UL962, EMC.

Code	059820
Supplier Code	TA16-4100-E25
Brand	TIMOTION
Thrust	2000 N
Traction	2000 N
Stroke	200 mm
Speed	5 mm/s
Engine Type	Parallel
Actuator Model	TA16
Connector	without connector
Weight	1,57 kg
