Inverters

Toshiba and INVT: high-performance industrial inverters, reliability and versatility without compromise.

The range of TOSHIBA vector inverters offers versatile and efficient solutions, from compact models of 0.25 kW to versions of 75 kW, available in single-phase or three-phase configurations, with or without the STO safety function and also in IP54/55 enclosure.
They can be equipped with accessories such as remote panels, potentiometers, braking resistors and input/output inductors, while the 3-year warranty confirms the quality and reliability of Toshiba products.

Download the TOSHIBA catalog

The INVT inverters combine high performance, reliability, and competitive pricing, making them ideal for numerous industrial applications. Designed to ensure efficiency and operational continuity, they are suitable for small and medium-sized plants as well as more complex applications.
Thanks to the ability to easily integrate expansion slots, they offer exceptional versatility and can accurately manage both asynchronous motors and PM synchronous motors, with or without feedback systems, ensuring high performance, stability, and reliability over time.

Download the INVT catalog

TOSHIBA Inverters

Discover the wide range of TOSHIBA vector inverters, from the small inverter with power from 0.25 kW up to 75 kW, single-phase and three-phase versions, with and without STO function for emergency stop or designed for IP54/55 panels.

Toshiba inverters can also be equipped with accessories such as remote panels, potentiometers, braking resistors, and input/output inductors. The 3-year warranty available across the entire range is synonymous with quality and reliability over time.

Toshiba inverters: ideal for every application and every environment.

Download the TOSHIBA catalog

VF-NC3

Single-Phase Inverter

Toshiba VF NC3 Series inverter, ideal for low power, only single-phase supply, with robust structure and competitive price for reliable industrial applications.

Single-phase supply 230Vac, three-phase output 230Vac
Powers from 0.2kW to 2.2kW
Vector control
Integrated class C1 filter (industrial and residential environments)
Control starting from 1Hz with 150% torque available
Integrated potentiometer on the front
Operating temperature up to 60°C
Complete PID controller
Integrated Modbus protocol
3-year warranty

VF-NC3 Datasheet

VF-S15

Single-Phase / Three-Phase Inverter

Toshiba VF S15 Series inverter, evolution of the VF S11 model, supports single-phase and three-phase supplies with improved functions and guaranteed higher efficiency.

Single-phase or three-phase supply (up to 500Vac)
Powers from 0.4kW to 15kW
High-performance vector control
200% torque near 0Hz
Integrated EMC filter
Input +/- 10V
"Recovery" function for lift applications
Optional STO function
Control of synchronous PM motors
"My function" PLC functionality
3-year warranty

VF-S15 Datasheet

VF-AS3

Single-Phase / Three-Phase Inverter

Toshiba VF AS3 Series inverter, designed for Industry 4.0, combines high performance, advanced control, and full versatility for any type of production plant.

Three-phase supply
Power range 0.4-315 KW IP20 (IP00)/IP55
Double power rating for normal/heavy loads
Robust and innovative integrated control panel
QR code management: stop the inverter alarm panic!
Open/closed loop vector control
Integrated Ethernet interface with web server
Integrated C2/C3 category filter and DC inductance
Max torque over 200% at 0 Hz
Safety input STO SIL3
Tropicalized IEC70721-3-3 cat. 3S3 and 3C3
Ideal for heavy-duty applications!

VF-AS3 Datasheet

INVT Inverters

The INVT inverters combine the need for high efficiency and maximum performance reliability over time with a competitive price.

Download the INVT catalog

Solutions suitable for any industrial application, INVT inverters are very versatile – thanks to the ease of integrating expansion slots – and capable of controlling asynchronous or synchronous PM motors, with or without feedback.

GD20 Series, cost-effective.

GD20 EU is the flagship of the INVT range. Available with powers ranging from 0.4KW to 110KW, the GD20 EU series offers an extremely complete set of functions, high dynamic performance, and an absolutely competitive price. GD20 inverters integrate the EMC filter (add-on option up to 2.2KW) and the certified safety STO function. Sensorless vector control with static or dynamic motor tuning promises over 200% torque at values below 1Hz for use even in particularly heavy applications.

GD28 Series, compact and versatile for general applications.

GD28 is the INVT inverter designed to offer maximum application flexibility in an extremely compact format. Ideal for automatic machines, HVAC systems, pumps, fans, conveyors, and OEM applications, the GD28 series combines sensorless vector control, ease of installation, and rapid integration into electrical panels. Available in various power sizes, GD28 ensures good dynamic performance, complete protection functions, and communication capabilities via Modbus RS485, representing a reliable and competitive solution for industrial automation.

GD350 Series, the universal inverter.

GD350 is a true high-performance drive for any type of industrial application. Capable of controlling both asynchronous or synchronous PM motors, with or without feedback, the GD350 can be used in complex applications that require high dynamic performance and effective motor control. GD350 comes standard with the EMC filter and the STO function. Three expansion slots allow the implementation of fieldbus, expansion of inputs and outputs, encoder/resolver cards, and modules with PLC functions.

GD270 Series, for normal duty applications.

GD270 is the INVT inverter designed for normal load applications, such as pumps, fans, refrigeration compressors, and air compressors, centrifugal systems, conveyors, and others. Characterized by an ultra-compact book format, the GD270 is available in a power range from 1.5KW to 500KW, with a 400Vac power class. GD270 comes standard with level C2 EMC filters up to 22kW and C3 for larger sizes.

GD390L Series, the ultimate answer for lift manufacturers, hoists, platforms, and escalators.

GD390L is an ultra-performance series, yet economically convenient, for elevators, hoists, lifts, and any other application that requires all the functions dedicated to lifting in a single device. GD390L is available in various power formats, from 2.2kW single-phase to 37kW three-phase and can thus be applied to almost all installations in the Lift sector.

GD20 Series

Single-Phase / Three-Phase Inverter

INVT GD20 Series inverter, compact and versatile, supports wall or guide mounting and is ideal for small markets and multiple applications.

Powers from 0.4kW to 110kW
STO (Safe Torque Off)
VF vector control and sensorless
Initial torque up to 0.5 Hz / 150%
Integrated braking unit and advanced interfaces
External keypad to copy parameters
Standard C3 filters (≥4kW); Optional C3 filters (≤2.2kW) and C2 filters
Customization services (like PTC and Fire-Mode)
UL/cUL certification and TUV SUD
3-year warranty

INVT GD20 Datasheet

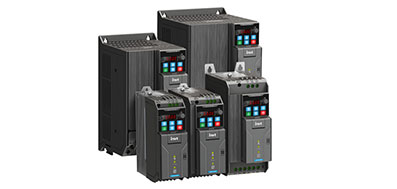

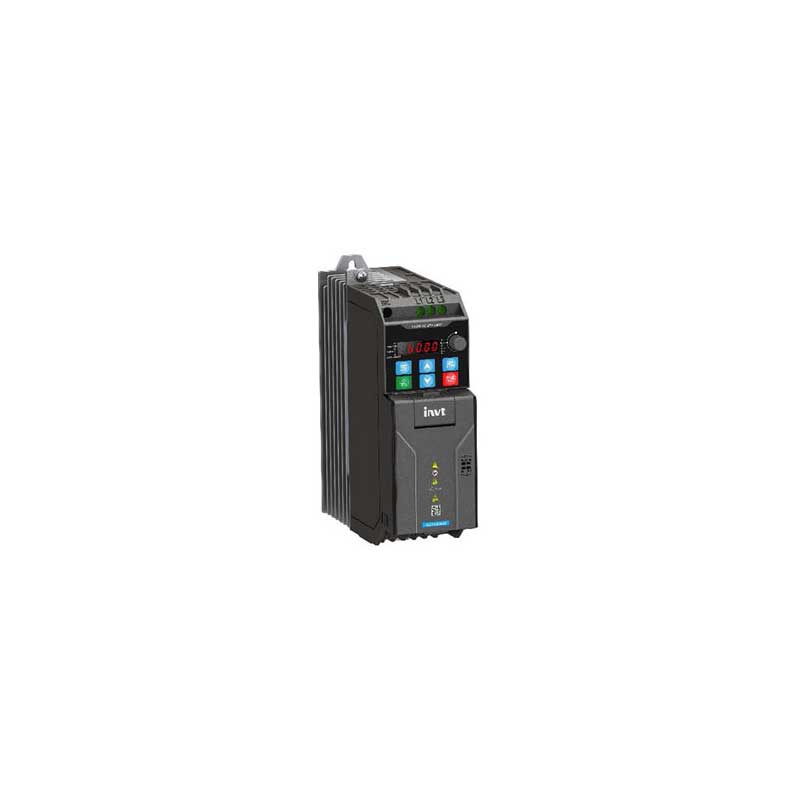

GD28 Series

Single-Phase / Three-Phase Inverter

INVT GD28 Series inverter, compact and versatile, ideal for general applications and OEM: quick installation, reduced size, and reliable control for pumps, fans, conveyors, and automatic machines.

Powers from 0.4kW to 110kW
Ultra-compact format, ideal for panels and OEM applications
Vector control and sensorless for asynchronous and PM motors
Good low-speed performance and stable starts
Full protection functions (overcurrent, overvoltage, overheating)
Simplified interface and commissioning
Integrated Modbus RS485 communication
Compatibility with accessories and expansion options (depending on the model)
EMC filter available based on size/configuration
3-year warranty

INVT GD28 Catalog

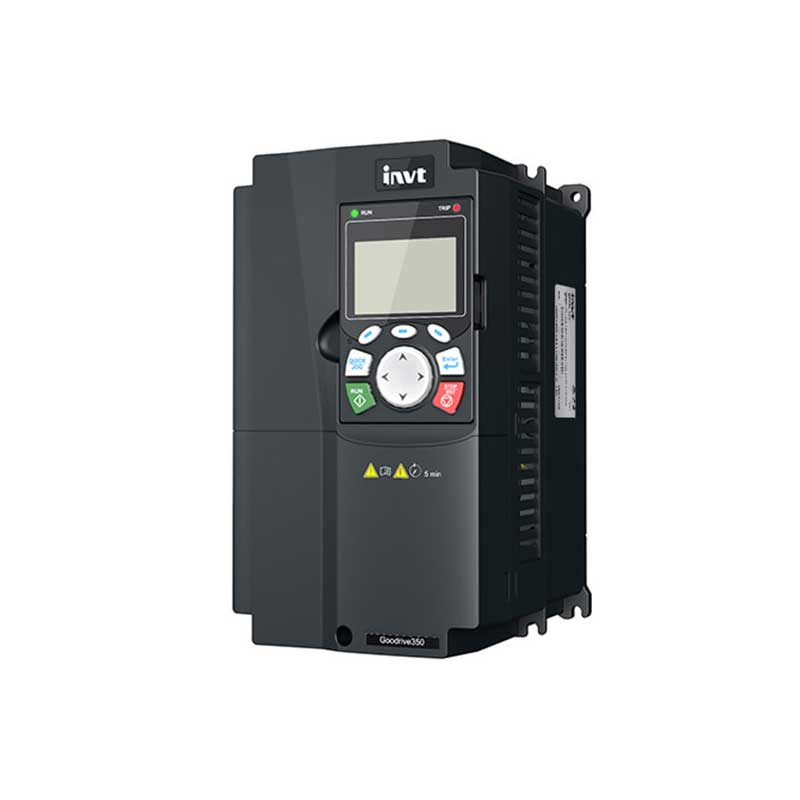

GD350 Series

Three-Phase Inverter

INVT GD350 Series inverter is the universal inverter for any type of electric motor and industrial application.

Powers from 1.5kW to 90kW
Vector control with direct current control
Integrated C3 EMC filter on all models
Integrated braking unit up to 37KW included (30KW for UL versions)
STO SIL 2 function
Speed, torque, and position control
Dual independent motor parameters set
Possibility of through-mounting the heatsink
3-year warranty

INVT GD350 Datasheet

GD270 Series

Three-Phase Inverter

INVT GD270 Series inverter comes standard with all the functionalities required for controlling pumps or fans.

Powers from 1.5kW to 500kW
Superior energy efficiency with ECO MODE
Advanced multi-pump control
Dual PID controller
Fire mode
Condensation and antifreeze prevention functions
Pump blockage prevention function
Advanced fan belt breakage management
Advanced management of power supply voltage dips
Dual expansion slot and compatibility with major field buses: Profinet, Profibus, CANopen, at launch

INVT GD270 Catalog

GD390L Series

Single-Phase / Three-Phase Inverter

INVT GD390L Series inverter is the ultimate answer for all elevator, lift, platform, and escalator manufacturers.

Powers from 2.2kW to 37kW
Integrated C2 filters for the Italian market
Braking chopper always included
Certified STO for contactorless mode
Control of asynchronous and synchronous motors with or without encoders
Standard Pt100 input and CANopen interface included
Standard incremental encoder input 5V/12V
Rescue/emergency function from UPS or batteries
Advanced LCD panel included
Wide customization possibilities

INVT GD390L Datasheet
