Joints and false links

Joints and False Links for Industrial Chains

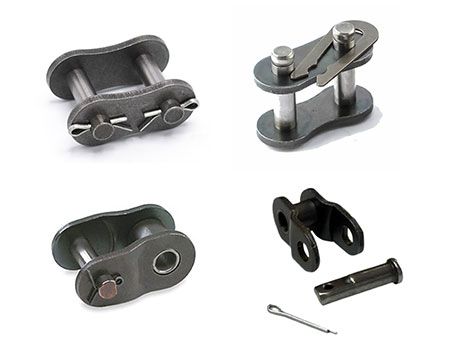

Transmission chains are typically supplied with free terminals. To properly connect these terminals, joints are used, available in various types depending on assembly requirements and strength.

Spring clip joints and safety pin joints allow for quick assembly and disassembly, making them ideal for frequent maintenance interventions. In contrast, the rivet joint ensures an extremely robust and permanent connection, but must be made in the factory or with specific equipment.

When the pitch number of an open chain is odd, a filler link must be used. This component consists of two special plates fixed with a pin and a roller; the wider part of the link is mounted at the end of the chain and locked with a safety pin.

It is important to pay particular attention to the use of filler links or spring clip or safety pin joints, as they can significantly reduce the break load of the chain and, consequently, its operational reliability.

Download the CHJC Chains catalog  Download the Ognibene Chains catalog

catene-giunzioni-false-maglie
Sort

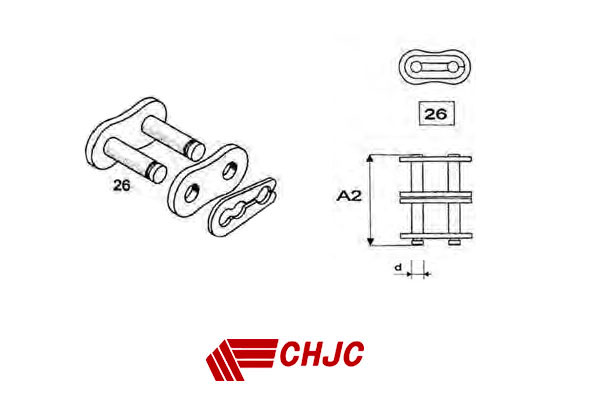

Double Joint, pitch 1/2" x 5/16" (12.7x7.75 mm), ISO 08 B2, Steel, type 26 with clip/spring
0,44 € /pc.
0,31 € /pc.
In Stock
(Ship. 1-2 days)
Simple Link, pitch 3/8" x 7/32" (9.525x5.72 mm), ISO 06 B1, Steel, type 59 with cotter pin
0,44 € /pc.
0,31 € /pc.
In Stock
(Ship. 1-2 days)
Simple Joint, pitch 1/2" x 5/16" (12.7x7.75 mm), ISO 08 B1, Steel, type 26 with clip/spring
0,21 € /pc.
0,15 € /pc.
In Stock
(Ship. 1-2 days)
Simple False Link, pitch 1/2" x 5/16" (12.7x7.75 mm), ISO 08 B1, Steel, type 59 with cotter pin
0,44 € /pc.
0,31 € /pc.
In Stock
(Ship. 1-2 days)
Simple False Link, pitch 5/8" x 3/8" (15.875x9.65 mm), ISO 10 B1, Steel, type 59 with cotter pin
0,74 € /pc.
0,52 € /pc.
In Stock
(Ship. 1-2 days)
Simple False Link, pitch 3/4" x 7/16" (19.05x11.68 mm), ISO 12 B1, Steel, type 59 with cotter pin
0,95 € /pc.
0,67 € /pc.
In Stock
(Ship. 1-2 days)
Simple False Link, pitch 1" x 17.02 mm (25.4x17.02 mm), ISO 16 B1, Steel, type 59 with cotter pin
2,32 € /pc.
1,63 € /pc.
In Stock
(Ship. 1-2 days)
Double Junction, pitch 5/8" x 3/8" (15.875x9.65 mm), ISO 10 B2, Steel, type 26 with clip/spring
0,80 € /pc.
0,56 € /pc.
In Stock
(Ship. 1-2 days)
Double Link, pitch 3/8" x 7/32" (9.525x5.72 mm), ISO 06 B2, Steel, type 59 with cotter pin
0,95 € /pc.
0,67 € /pc.
In Stock
(Ship. 1-2 days)
Double Link, pitch 1/2" x 5/16" (12.7x7.75 mm), ISO 08 B2, Steel, type 59 with cotter pin
0,95 € /pc.
0,67 € /pc.
In Stock
(Ship. 1-2 days)
Double Link, pitch 5/8" x 3/8" (15.875x9.65 mm), ISO 10 B2, Steel, type 59 with lock pin
1,61 € /pc.
1,13 € /pc.
In Stock
(Ship. 1-2 days)
Double Link, pitch 3/4" x 7/16" (19.05x11.68 mm), ISO 12 B2, Steel, type 59 with pin
5,15 € /pc.
3,61 € /pc.
In Stock
(Ship. 1-2 days)
Double False Link, pitch 1" x 17.02 mm (25.4x17.02 mm), ISO 16 B2, Steel, type 59 with cotter pin
4,67 € /pc.
3,27 € /pc.
In Stock
(Ship. 1-2 days)
Triple Junction, pitch 3/8" x 7/32" (9.525x5.72 mm), ISO 06 B3, Steel, type 26 with clip/spring
0,70 € /pc.
0,49 € /pc.
In Stock
(Ship. 1-2 days)
Triple Junction, pitch 1/2" x 5/16" (12.7x7.75 mm), ISO 08 B3, Steel, type 26 with clip/spring
0,70 € /pc.
0,49 € /pc.
In Stock
(Ship. 1-2 days)
Triple False Link, pitch 3/8" x 7/32" (9.525x5.72 mm), ISO 06 B3, Steel, type 59 with cotter pin
1,35 € /pc.
0,95 € /pc.
In Stock
(Ship. 1-2 days)
Triple False Link, pitch 1/2" x 5/16" (12.7x7.75 mm), ISO 08 B3, Steel, type 59 with cotter pin
1,22 € /pc.
0,86 € /pc.
In Stock
(Ship. 1-2 days)
Simple Joint, pitch 8x3 mm, ISO 05B1, type 26 with clip/spring
0,30 € /pc.
0,21 € /pc.
In Stock
(Ship. 1-2 days)
Simple False Link, pitch 8 x 3 mm, ISO 05 B1, Steel, type 59 with cotter pin
0,61 € /pc.
0,43 € /pc.
In Stock
(Ship. 1-2 days)
Simple Joint, step 1/2" x 5/16" (12.7x7.95 mm), ASA 40, Steel, type 26 with clip/spring
In Stock
(Ship. 1-2 days)
On request
