How to Measure a Trapezoidal Belt
The length of the trapezoidal belt usually refers to the pitch.
The pitch of a trapezoidal belt can be expressed in millimeters or inches, which is why we have divided the products on our site into two specific categories: metric trapezoidal belts and inch trapezoidal belts.
For inch trapezoidal belts, whether smooth or notched, the measurements indicated on the back of the belt relate to the internal pitch expressed in inches, while for metric trapezoidal belts (with SP prefix), the measurements relate to the primitive pitch expressed in millimeters.
At this point, you have everything needed to identify the trapezoidal belt on our site... but if it is not possible to read the belt code, for example because it is too worn, it is possible to proceed with manual measurement of the pitch.
How to measure the pitch of a belt?
To perform the practical measurement of your belt length, you can use the specific gauge, a tape measure, or more easily a common packing string.
How to calculate the length?
To know how long a belt is, simply manually measure the OUTER LENGTH, taking the measurement in millimeters, and then calculate the inner length or primitive length based on the information from the tables below.
It should be noted that for classic trapezoidal belts, the internal development is indicated as the standard reference, while for narrow trapezoidal belts, prefixed with SP, the primitive development is usually indicated.
Trapezoidal belts in inches
Metric trapezoidal belts

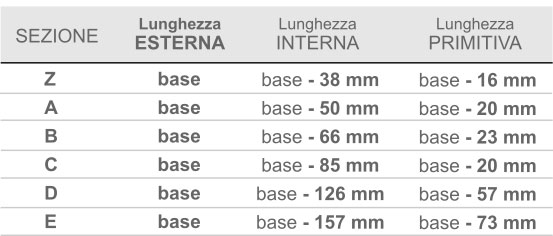

After measuring the outer length (base), which is usually the easiest and quickest to obtain, it is sufficient to subtract the values indicated in the table from the measured value in millimeters to get the actual development.
Generally, for classic trapezoidal belts, the inch is used as the unit of measurement, but to facilitate calculations, we preferred to indicate all measurements also in millimeters.
At this point, we have the measurements needed for a targeted search on our shop.atti.it
Discover our catalog:
